SD1, Coopers Speech Dialler

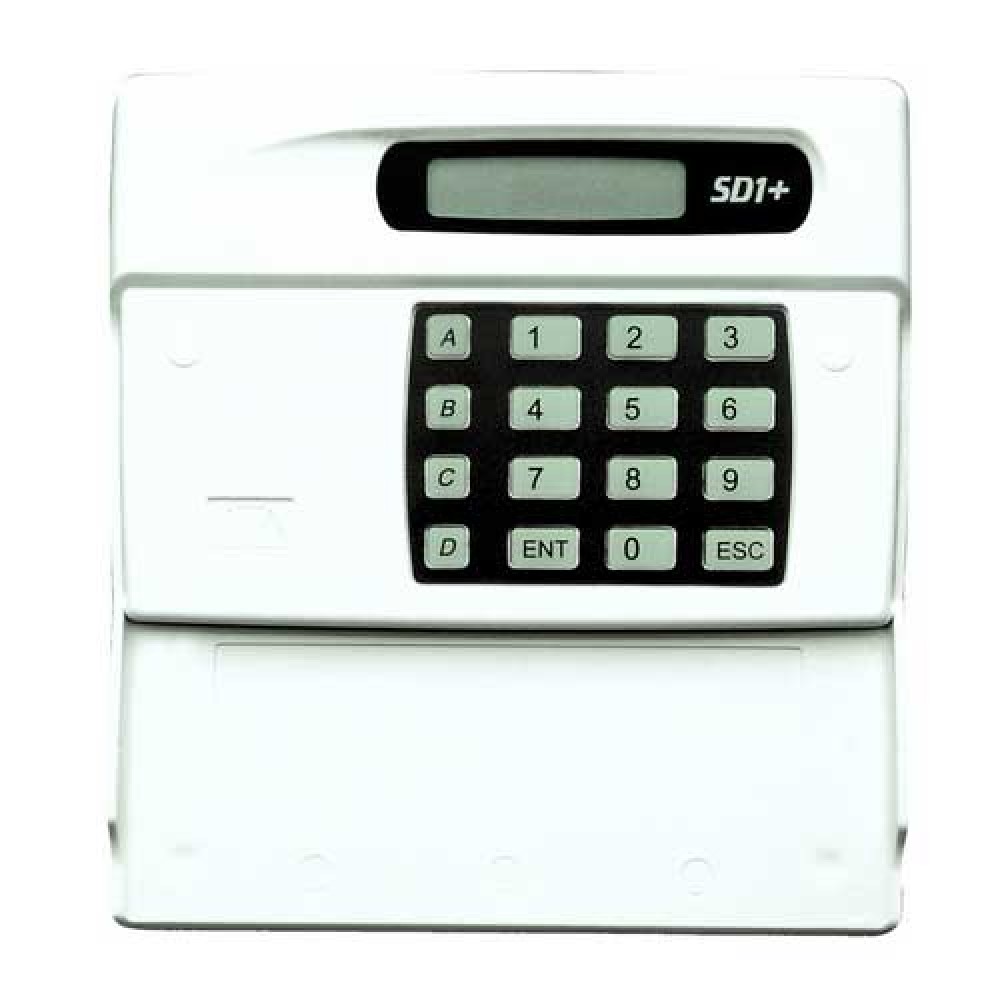

SD1+ (SD1-UK)

The SD1-UK is an updated variant of the SD1+. The older variant of the SD1+ is the TSD1. The SD1-UK provides the same features as the TSD1, but has small changes to the user interface and an increased recording time.

If you are uncertain of which variant you are dealing with, then there are two ways to tell a SD1-UK from a TSD1:
1.When you apply power to the product, key in the access code and then press key 1. A SD1-UK will display "ENT 1-4" while a TSD1 will give you a single low pitched error tone.
2.Open the case and look for a paper label on the PCB with the words "Removal of this label invalidates Warranty". The same label will give the product name.

Physical:
Dimensions (w*h*d):150 * 104 * 30mm
Weight (packed): 282g
Environment: -10°C - 40°C
Electrical:
Input voltage: 11.5 - 14V DC
Dialler current: 35mA (standby) 70mA (active)
Trigger inputs
A, B, C, D: +ve or -ve applied, max 24V
Phrase length
(A, B, C, D, 0):Variable - max 25s per phrase
Message length: Max 50 seconds
REN value: 0
Dialling method: LD or DTMF
