MTTS-EXIT, Surface touch to exit

MTTS-EXIT

Surface touch to exit

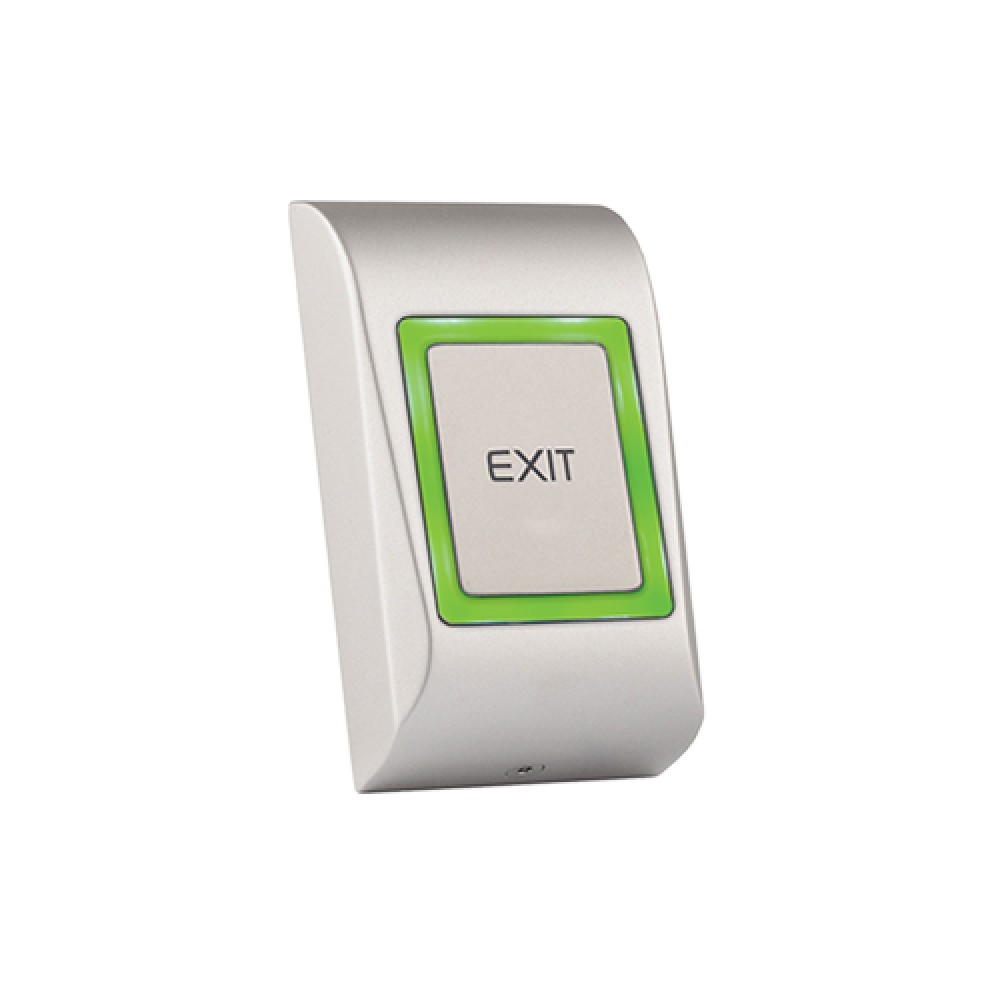

The MTT is a surface mount request to exit device with large touch plate and halo illumination to indicate the state (Open or closed). With its slim looks and die cast aluminium body, the metal touch combines elegance and aesthetics with ruggedness and reliability.

Powered from 12Vdc and with a dry contact change over relay output (C, NO & NC) the device can be triggered for 3, 5 or 10 seconds or set into a latching (toggle) mode using the internal jumper settings.

In standby the unit is illuminated red to indicate the exit is secured. Touching the plate changes the illumination to green and along with a reassurance beep the relay will operate to open the exit for the programmed time.

Features

•Touch sensitive request to exit button

•Die cast aluminium IP54 rated

•Audible and visual feedback

•Programmable relay time or latching
