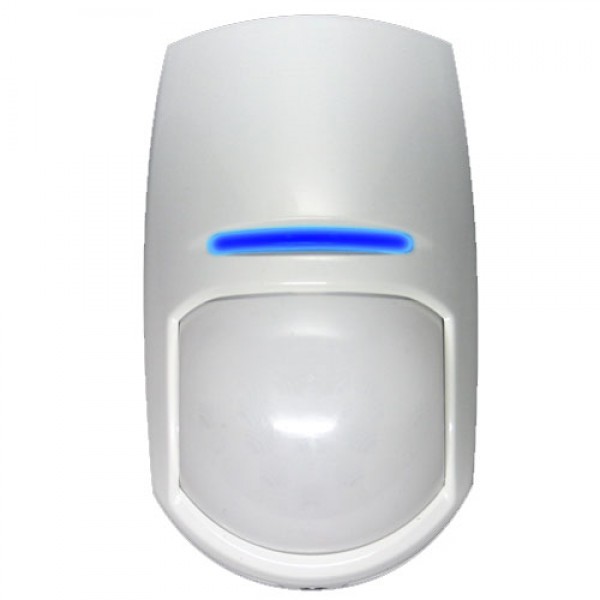

KX15DTAM (Grade 3) Dual Tech Detector with Anti Mask
Click Image for Gallery
KX15DTAM (Grade 3) Dual Tech Detector with Anti Mask
- Dual element pyro-electric sensor
- X-band DRO based microwave
- optional lenses 18m and 30m
- Anti-masking detection
- 0-1m Adjustable mask detection
- Selectable EOL (End Of Line) resistors
- AND/OR technology
- Patented Independent Floating Thresholds (IFT)
- Blue wave technology
- Auto sensitivity feature
- Digital temperature compensation
- Triple LED indication
- Frequency options
- Sealed optics
- Tamper proof brackets included
- ABS plastics
- Tested and Certified to EN 50131-2-4
Product Features
| Features | Description |
| 15m Volumetric detector | 15m Volumetric detection coverage. Ideal for protection of rooms, offices etc. |
| 18m Vertical curtain detector | 18m Vertical curtain detection coverage. Ideal for protection of large windows areas |
| 30m Long range detector | 30m long range detection coverage. Ideal for long narrow areas or corridors |
| Anti-masking detection | Ideal in high security environments where there may be a significant risk of masking. An area immediately in front of the KX15DTAM is monitored continuously and separately from its normal mode. Any intrusion into this quiet area activates the anti-masking process. It also has separate mask and trouble output. |
| Independent mask relay | In the event of one of the technologies being masked, the KX15DTAM will go into a mask fault condition. The mask relay will open. This can be connected to the 24hr zone of a control panel |
| Selectable EOL resistors | The detector incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market. |
| AND/OR technology | AND’ mode operates as a standard dual technology detector. ‘OR’ mode will switch to microwave detection in environments where there is a risk of PIR detection being blocked, |
| Blue wave technology | This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity. |
| Auto sensitivity feature | Depending on the environment condition, the detector will automatically adjust the sensitivity |
| Digital Temperature Compensation | When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC) |
| Active self test | If there is no activation after a 5 hour period it will actually self test both the PIR and microwave |
| Triple LED indication | Microwave - orange, PIR - green, alarm - blue. (KX15DTAM - Blue flashing = mask) |
| Microwave Frequencies Bands | 3 different frequency bands to avoid interference between detectors are installed in the same room |
